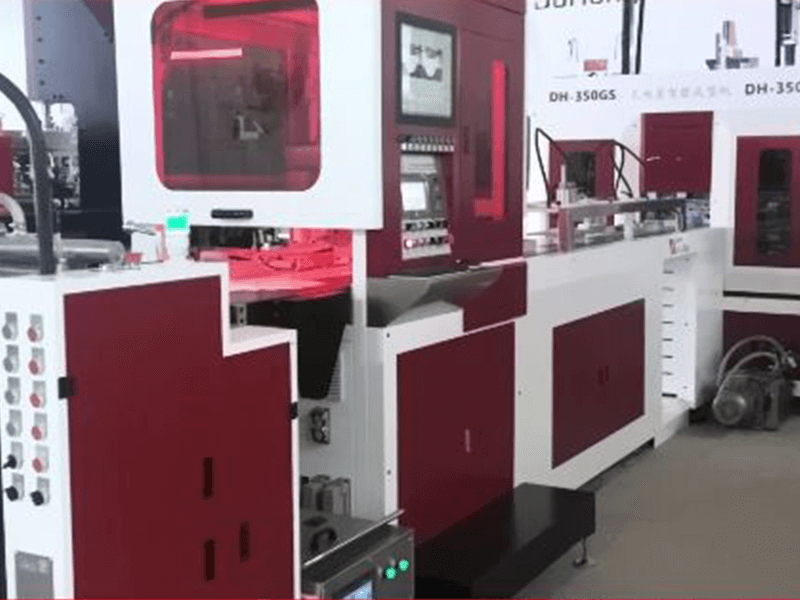

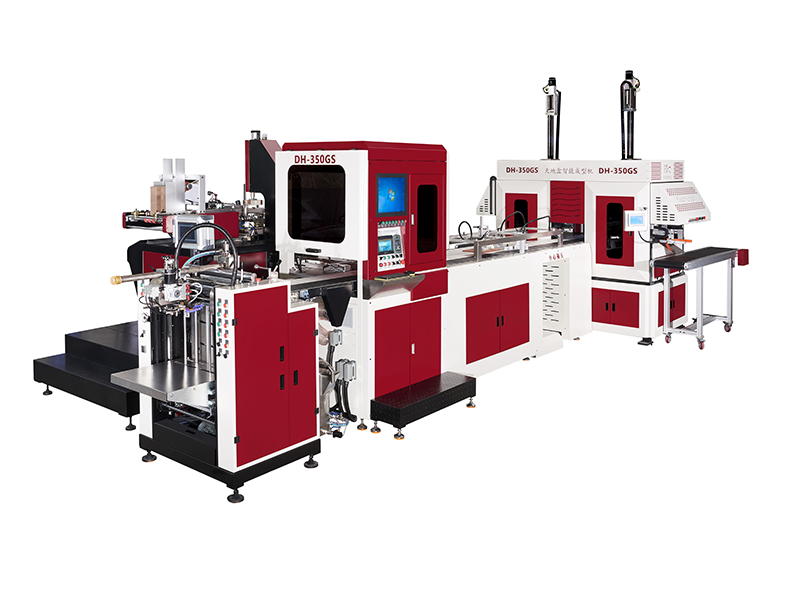

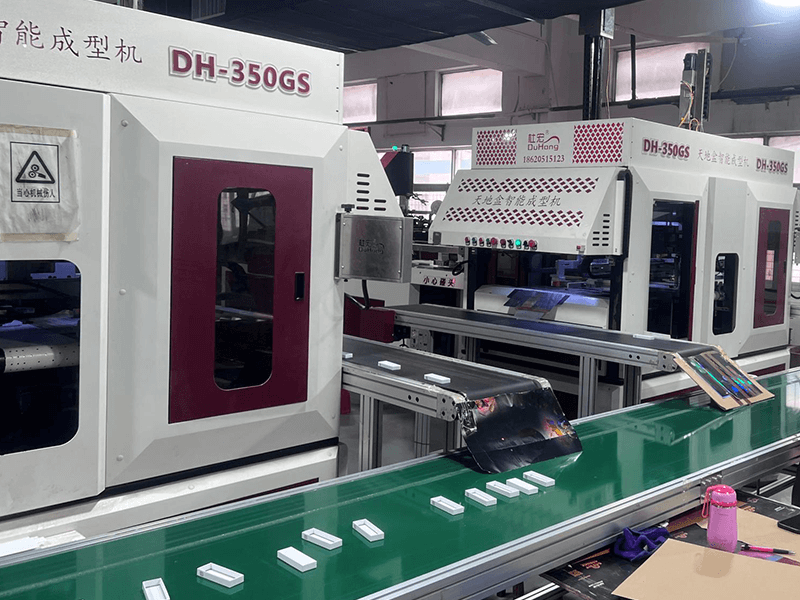

The DH-350GS is our company's latest fully automatic intelligent top-and-base box-making machine, specially designed for crafting high-end packaging such as luxury jewelry boxes, smartphone boxes, accessory boxes, gift boxes, cosmetic boxes, watch boxes, slant-edge boxes, book covers (optional), and connected boxes (optional). With a maximum size capacity of 350mm in length and 300mm in width, it accommodates a broader range of box types, thereby better meeting the demands of the modern packaging market.
Equipment Features：
① Suitable for automatic production of various hard boxes with lids and tops. | ② Full computer-controlled parameter settings and automatic mold change function (optional). |
③ Fault diagnosis function. | ④ Automatic suction and feeding of face paper and grey board. |
⑤ 24-hour glue preheating control function. | ⑥ The forming machine has 300 built-in product formulas. |
⑦ Four-corner heating control via a separate human-machine interface. | ⑧ Image positioning system and robotic arm gripping. |
⑨ Automatic box lifting and retrieval device in the forming section. | ⑩ Automatic glue viscosity control system (optional). |
This machine is equipped with a servo control system and an image positioning system, enabling the automatic completion of processes such as paper feeding, gluing, grey board feeding, four-corner pasting, positioning, box wrapping, edge folding, ear folding, and final box forming.
Product Description
Type | DH-350GS |
Paper size(max) | L500*W400mm |
Paper size(min) | L80*W50mm |
Paper Thickness | 100-400g/m² |
Cardboard Thickness | 0.8~3mm |
Finished Product(Carton)Size(max) | L350*W300*H95mm |
Finished Product(Carton)Size(min) | L50*W30*H8mm |
Fold-in edge size(Rmax) | 80mm |
Fold-in edge size(Rmin) | 6mm |
Positioning Accuracy | ±0.10mm |
Production Speed | 35-50pcs/min |
Total Power | 34kw/380v 3phase |
Production Operating Power | 25kw |
Auxiliary Power | 9kw |
Electric Power | 5.1kw |
Weight | 4150kg |
Machine size(L*W*H) | 8000*4200*3200mm |
| This data is intended as a rough reference; actual results may vary based on individual cases. | |
Remarks：
1. The finished Box Max. sizes are determined by paper size.
2. Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3. The production speed of the rigid box machine is determined by the box size, the paper and the grey board materials.
4. Seller doesn't provide air compressor. (8atm=0.8MPa, 7.5kW compressor is needed).
5. Specific box and paper can fulfill folding in depth above 20mm.
