Equipment Features：
① Fast framing capabilities | ② Energy-saving and environmentally friendly design |
③ Equipment is easy to operate | ④ High operational safety |
⑤ Easy machine maintenance | ⑥ Semi-automatic type |
Product Description

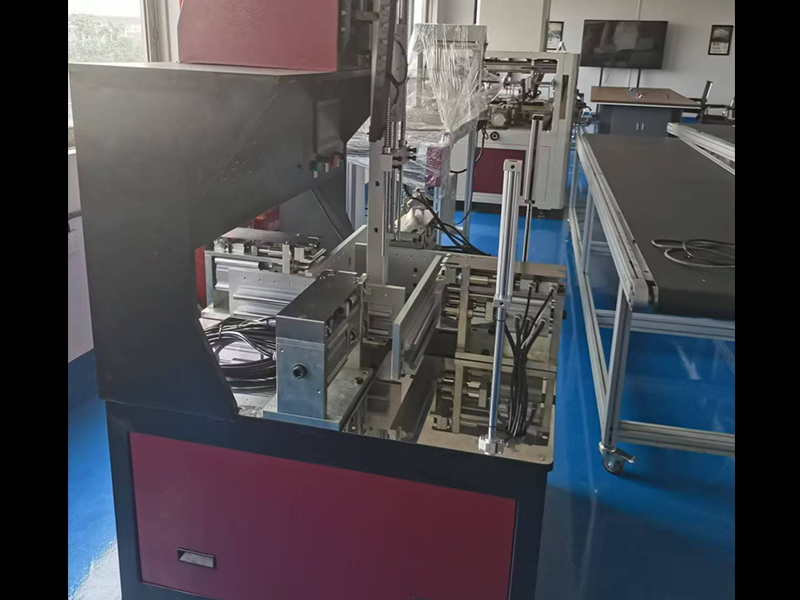

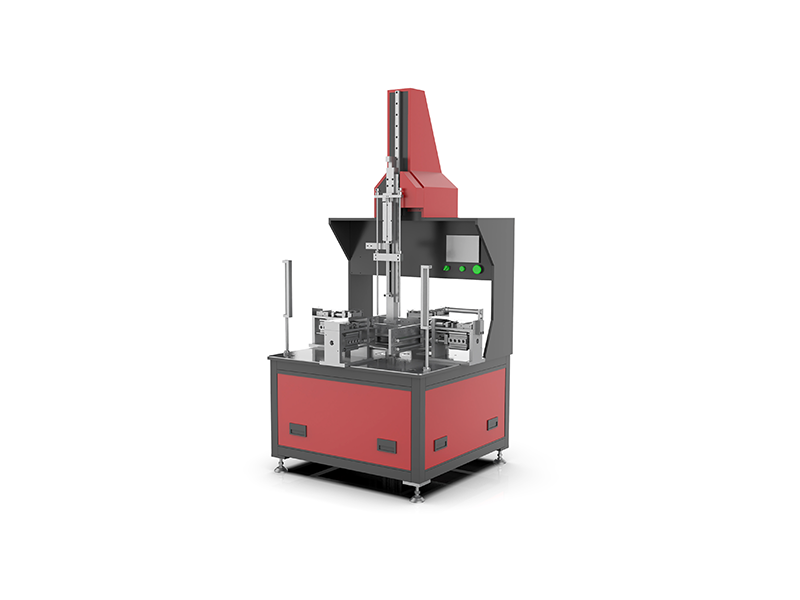

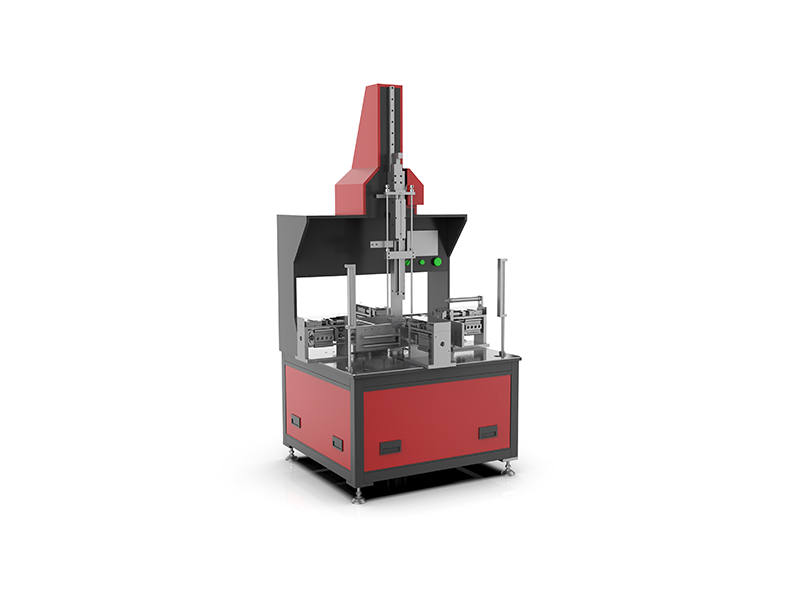

Type | DH-4045W |
Finished Product(Carton) size(max) | L450*W400*H115mm |
Finished Product(Carton) size(min) | L60*W100*H15mm |
Gray Board Thickness | 0.8~3mm |
Paper Thickness | 100-400g/m2 |
Production Speed | 20pcs/min |
Total Power | 2.5kw/220v 1phase |
Weight | 500kg |
Machine size(L*W*H) | 1000*1000*2500mm |
This data is intended as a rough reference; actual results may vary based on individual cases. |
Remarks：
1. The finished Box Max. sizes are determined by paper size.
2. Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3. The production speed of the rigid box machine is determined by the box size, the paper and the grey board materials.
4. Seller doesn't provide air compressor. (8atm=0.8MPa, 7.5kW compressor is needed).
5. Specific box and paper can fulfill folding in depth above 20mm.
